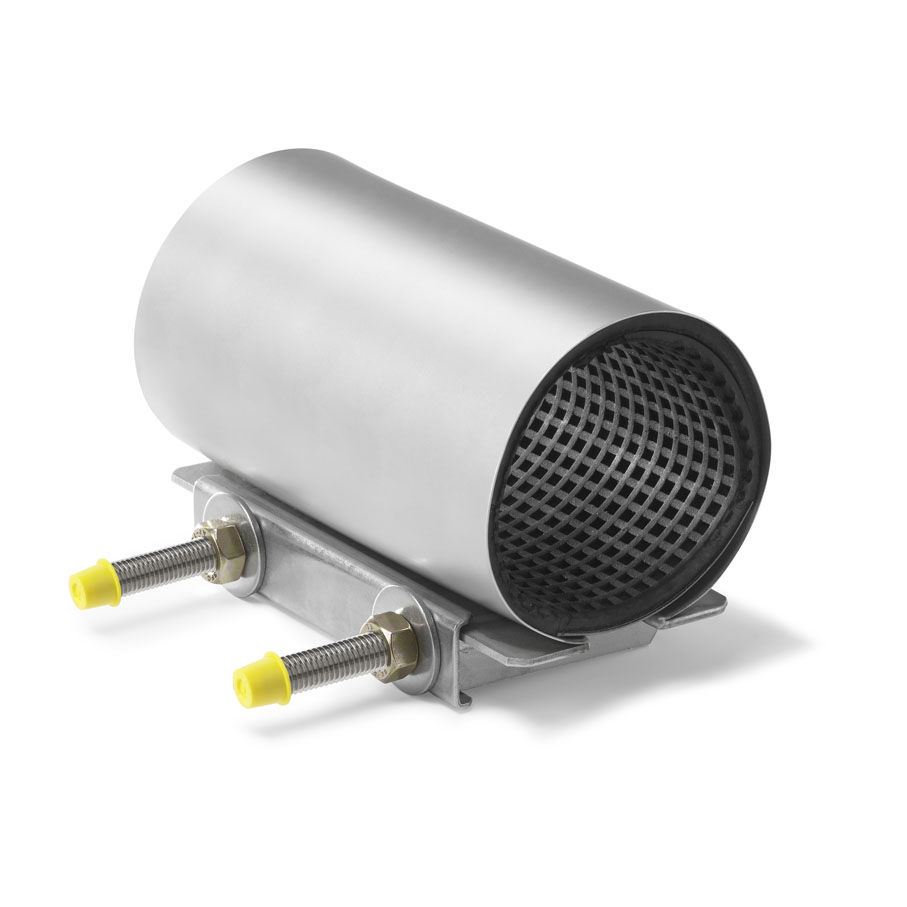

PEWOCLAMP ø 19-843 mm / PN16 (NBR) A4

Damage length: Damage length up to max. 400 mm all damages
Flowing medium: Water / flammable gases / compressed air / oil / fuel and other hydrocarbons -20 °C bis +80 °C NBR
Housing material: Closure, Housing Material A4 (1.4571)
  • -20°C bis +70°C
  • For price information, please .

    OD Ø min. / max.:

    Damage length:

    • 75HQS-16A4N19-23
    • 73072980

    • PEWOCLAMP one-piece Repair clamp with  one screw plug per closure, pressure range: PN 16 width: 75 mm  Ø min./max.: 19-23 Stainless Steel Quality: Closure, Housing Material  A4 (1.4571) max. 10 mm damage length  Waffle structure seal NBR sulfur cured temperature range:  -20°C up to +70°C / Country of origin: NL TARIC: 73072980
    Product information "PEWOCLAMP ø 19-843 mm / PN16 (NBR) A4"

    OD Ø min. / max. ? B Cmax M
    19-23 mm 75 mm 10 mm M12
